Barcode Scanners

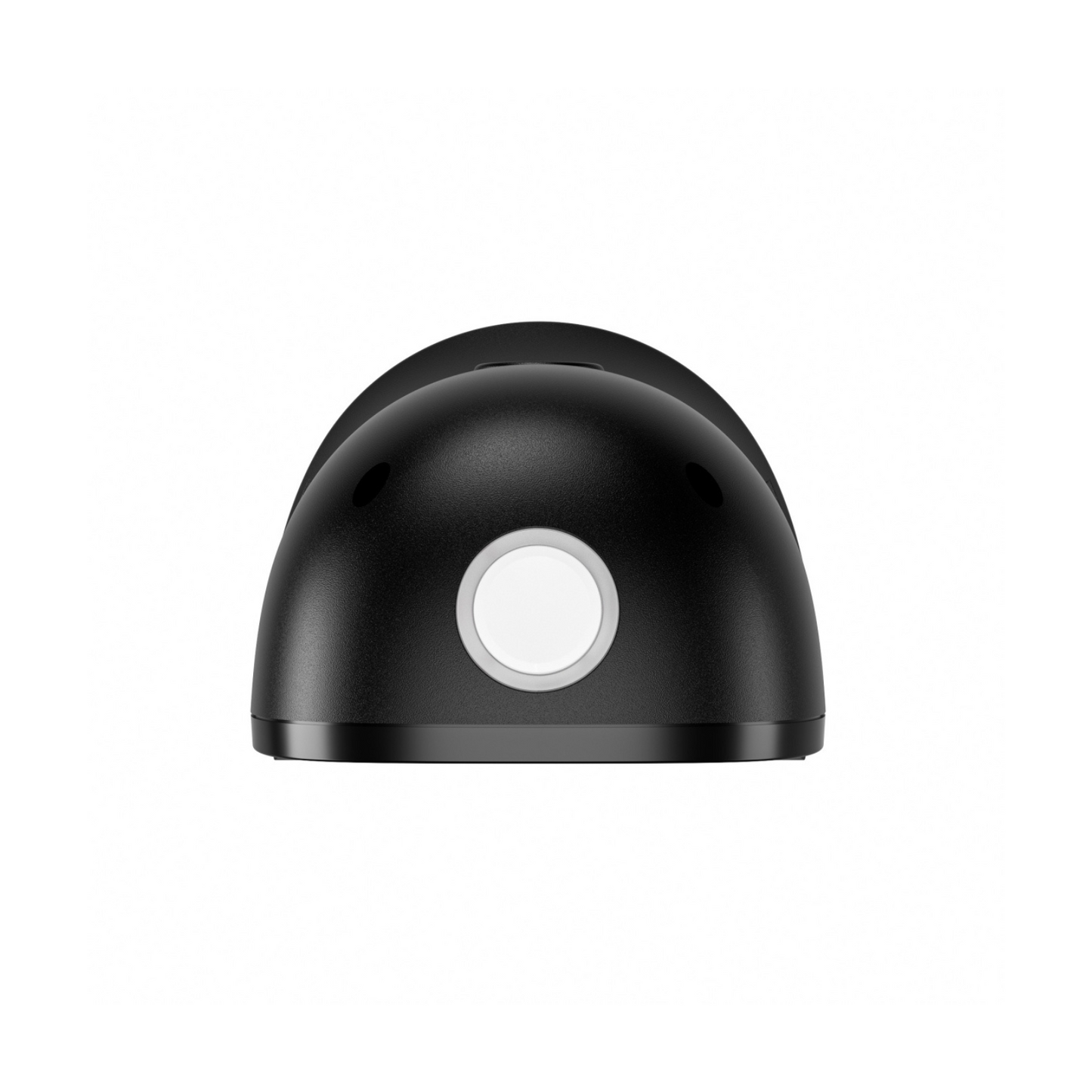

BS120 2D Area Imager Barcode Reader
Looking for a barcode reader that is fast, versatile and durable? Then the BS120 Pos & Office scanner is the ideal product for you. This 2D area imager scanner allows you to read 1D and 2D codes, both printed and on screens, with high precision and speed. Its ergonomic and compact design adapts perfectly to your…
Description
-
Looking for a barcode reader that is fast, versatile and durable?
Then the BS120 Pos & Office scanner is the ideal product for you.
- This 2D area imager scanner allows you to read 1D and 2D codes, both printed and on screens, with high precision and speed.
-
Its ergonomic and compact design adapts perfectly to your workspace, and its resistance to shocks and falls guarantees a long useful life.
-
Its installation is very simple, you just have to connect it and start reading, without the need for complex configurations.
-
The Pos & Office BS120 barcode reader is the equipment you need for the point of sale.
Technical specifications
Technical specifications
- Dimensions
- 100mm x 82mm x 150mm
- Weight
- 200 grams (without cable)
What is in the box
1x BS120 scanner (includes USB cable)
1x Quick user guide
1x Quick user guide
Image sensor
640px x 480px
Resolution
≥ 5 thousand
Light
White led
Light level
0 – 100,000 Lux
Depth of field
0-200mm @ UPC/EAN 13mil PCS =90%
0-150mm @ QR 20mil PCS =100%
Minimum print contrast
25%
Scan Angle Roll
360°
Scan Angle Tilt
±60°
Scan angle bias
±60°
Horizontal field of view
48°
Vertical field of view
30°
640px x 480px
Resolution
≥ 5 thousand
Light
White led
Light level
0 – 100,000 Lux
Depth of field
0-200mm @ UPC/EAN 13mil PCS =90%
0-150mm @ QR 20mil PCS =100%
Minimum print contrast
25%
Scan Angle Roll
360°
Scan Angle Tilt
±60°
Scan angle bias
±60°
Horizontal field of view
48°
Vertical field of view
30°
Operating temperature
-20 to 60°C
Storage temperature
-40 to 70°C
Humidity
5% to 95% (non-condensing)
Drop resistance
Resists 2 meter drops onto concrete
-20 to 60°C
Storage temperature
-40 to 70°C
Humidity
5% to 95% (non-condensing)
Drop resistance
Resists 2 meter drops onto concrete
DATA CAPTURE
1D
All major symbologies including UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessey, Code 32, RSS 14, RSS Limited, RSS Expanded
2D
All major symbologies including QR Code, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar stack.
It can read codes from screens.
All major symbologies including UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessey, Code 32, RSS 14, RSS Limited, RSS Expanded
2D
All major symbologies including QR Code, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar stack.
It can read codes from screens.
PHYSICAL CHARACTERISTICS
Dimensions
100mm x 82mm x 150mm
Weight
200 grams (without cable)
Interfaces
USB
Cable length
1.8 meters
Notifications
Beep, blue LED indicator
Input voltage
5VDC ± 10%
Running current
250mA (typical)
100mm x 82mm x 150mm
Weight
200 grams (without cable)
Interfaces
USB
Cable length
1.8 meters
Notifications
Beep, blue LED indicator
Input voltage
5VDC ± 10%
Running current
250mA (typical)
