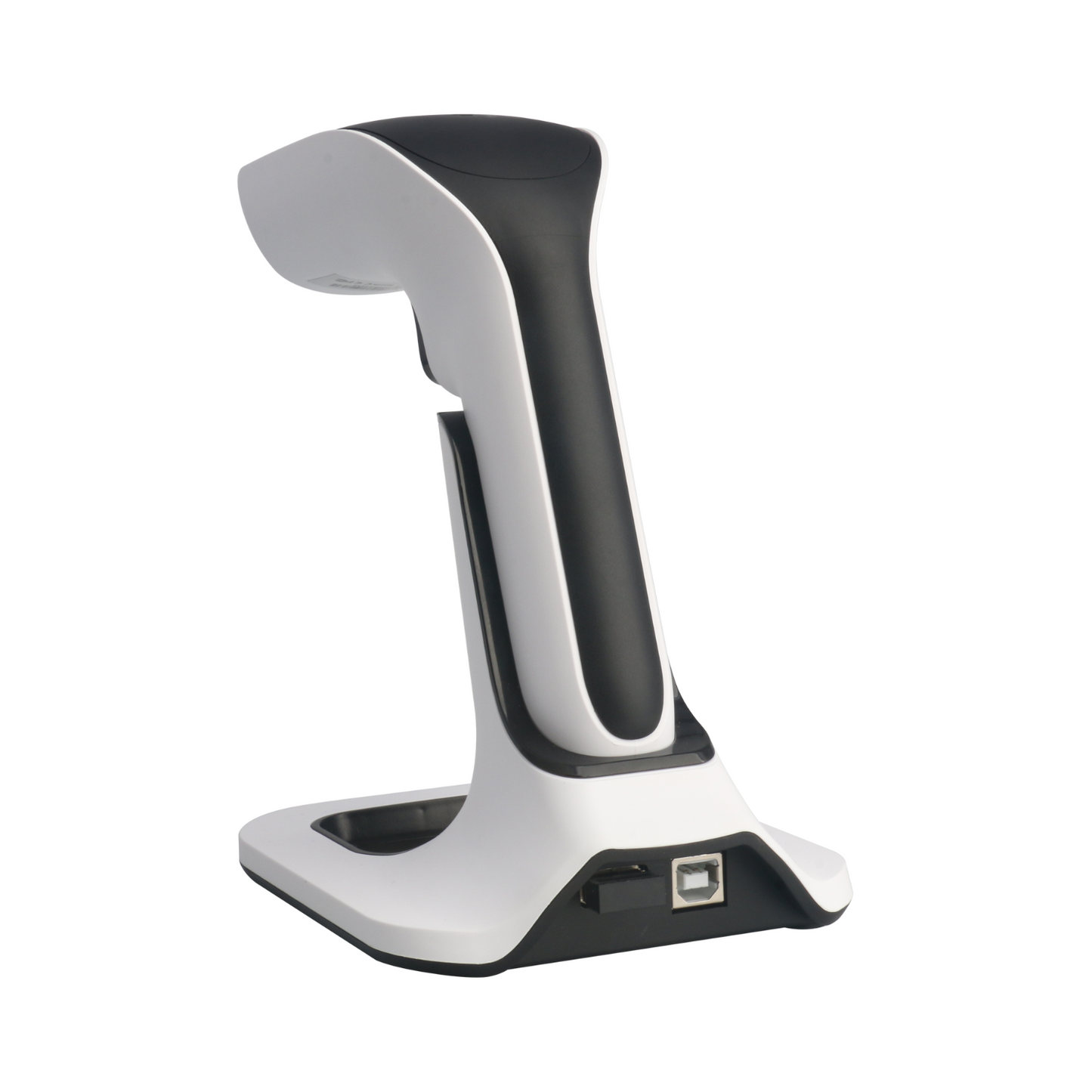

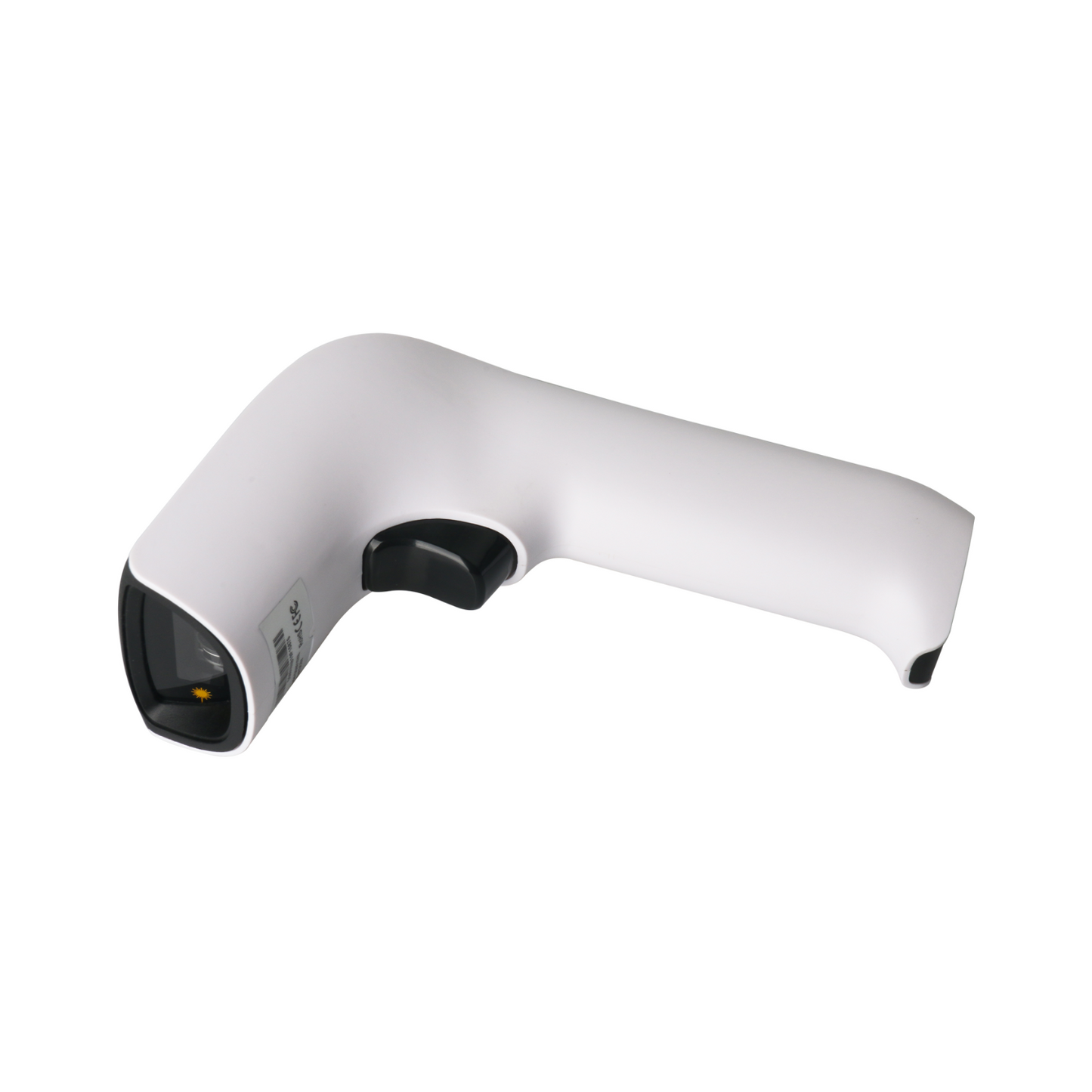

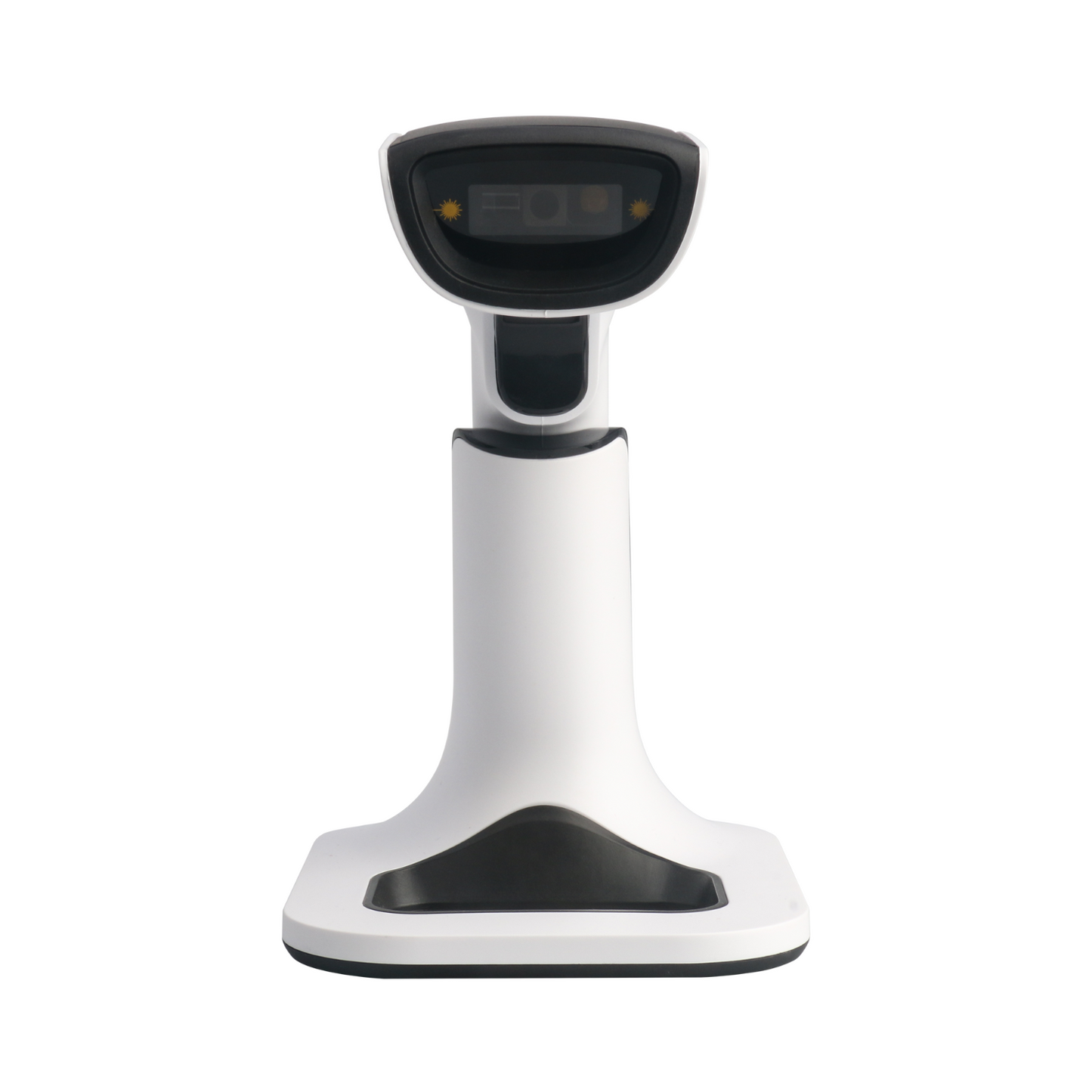

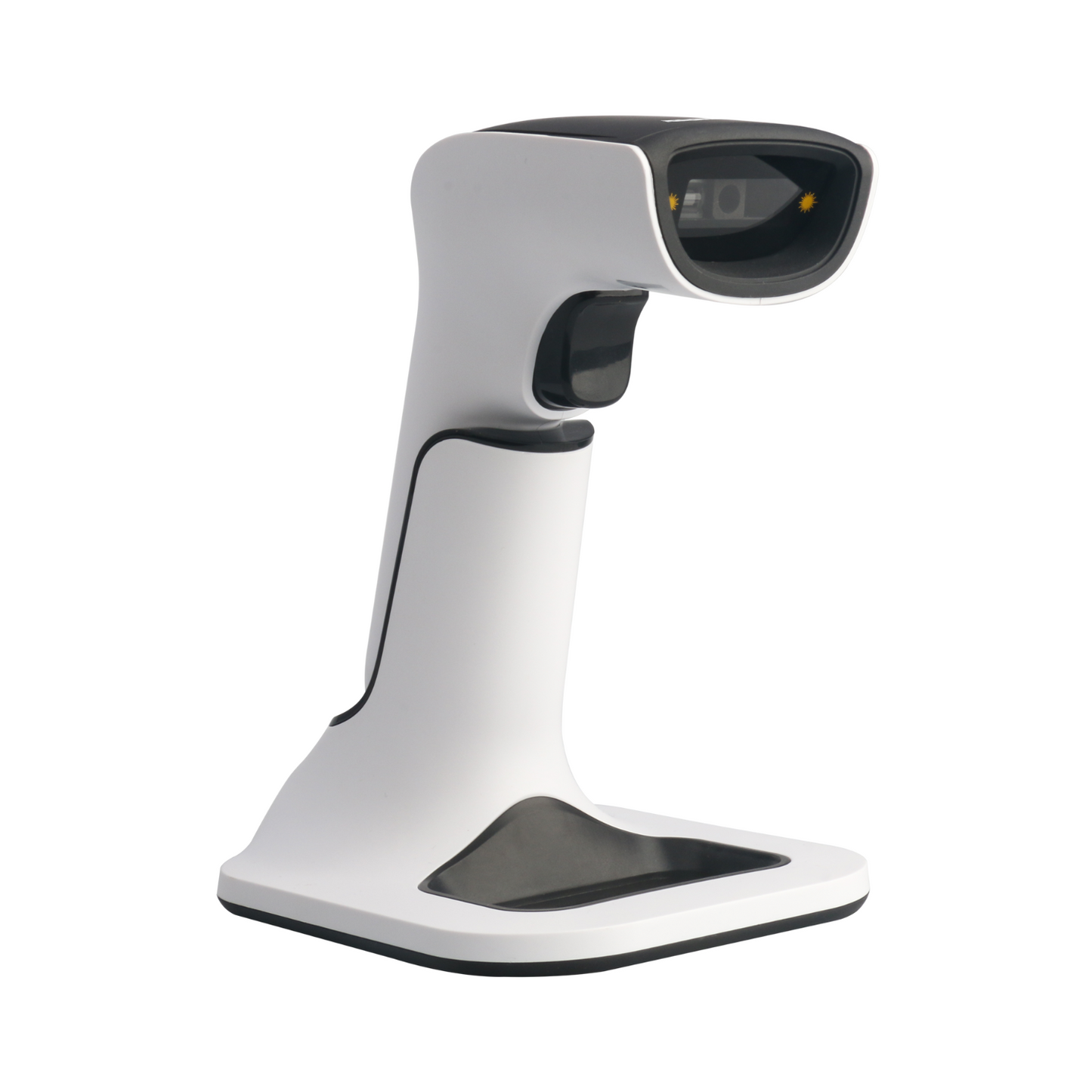

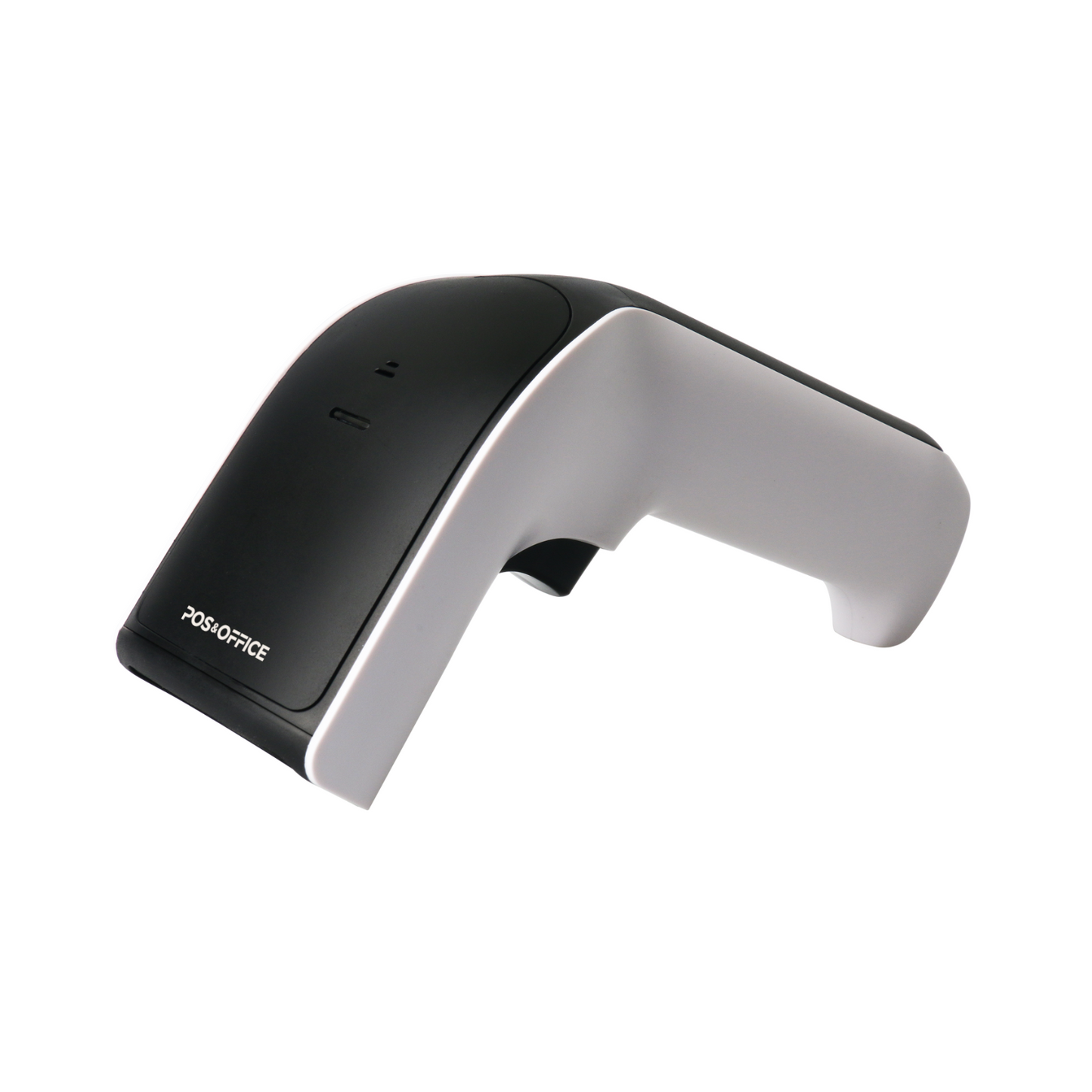

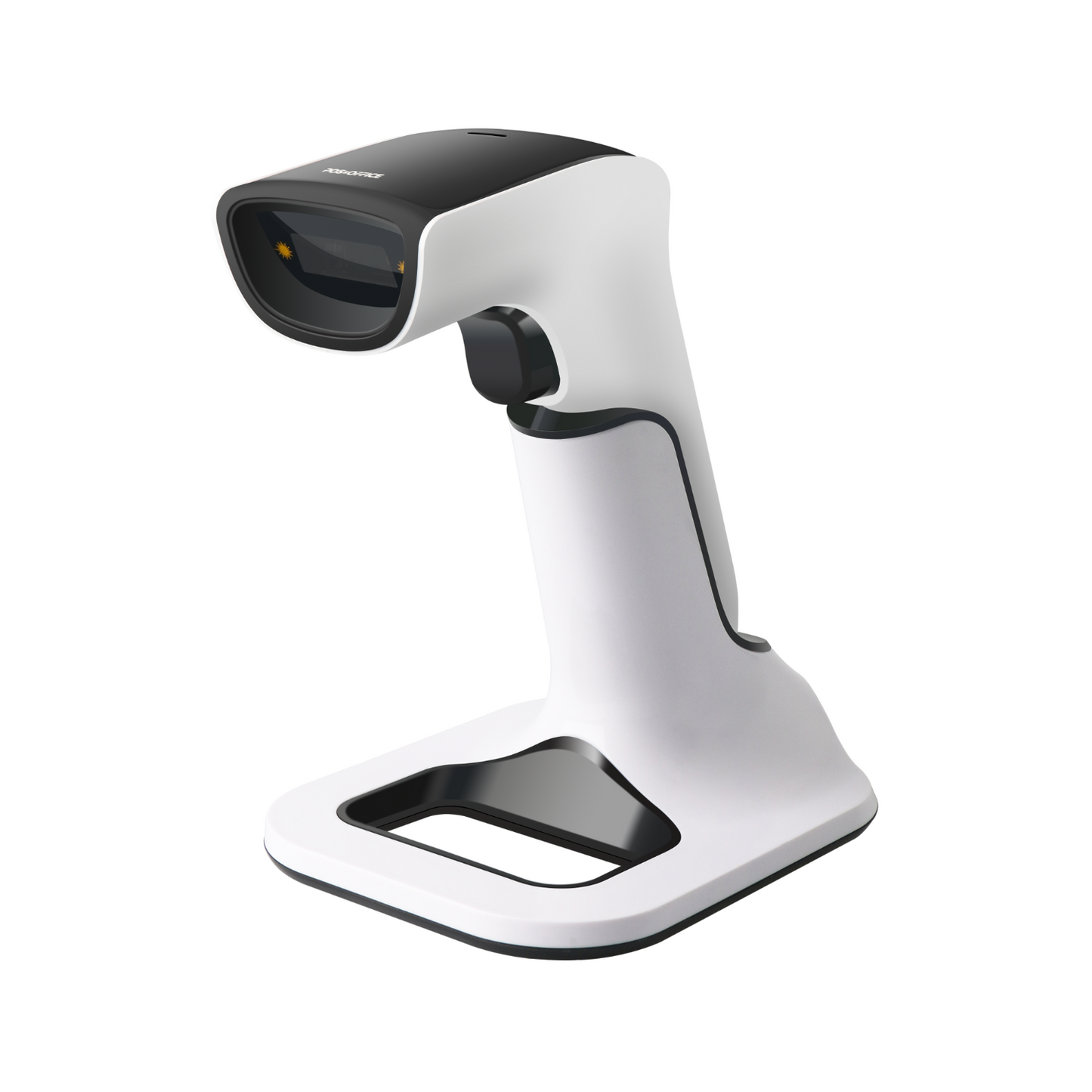

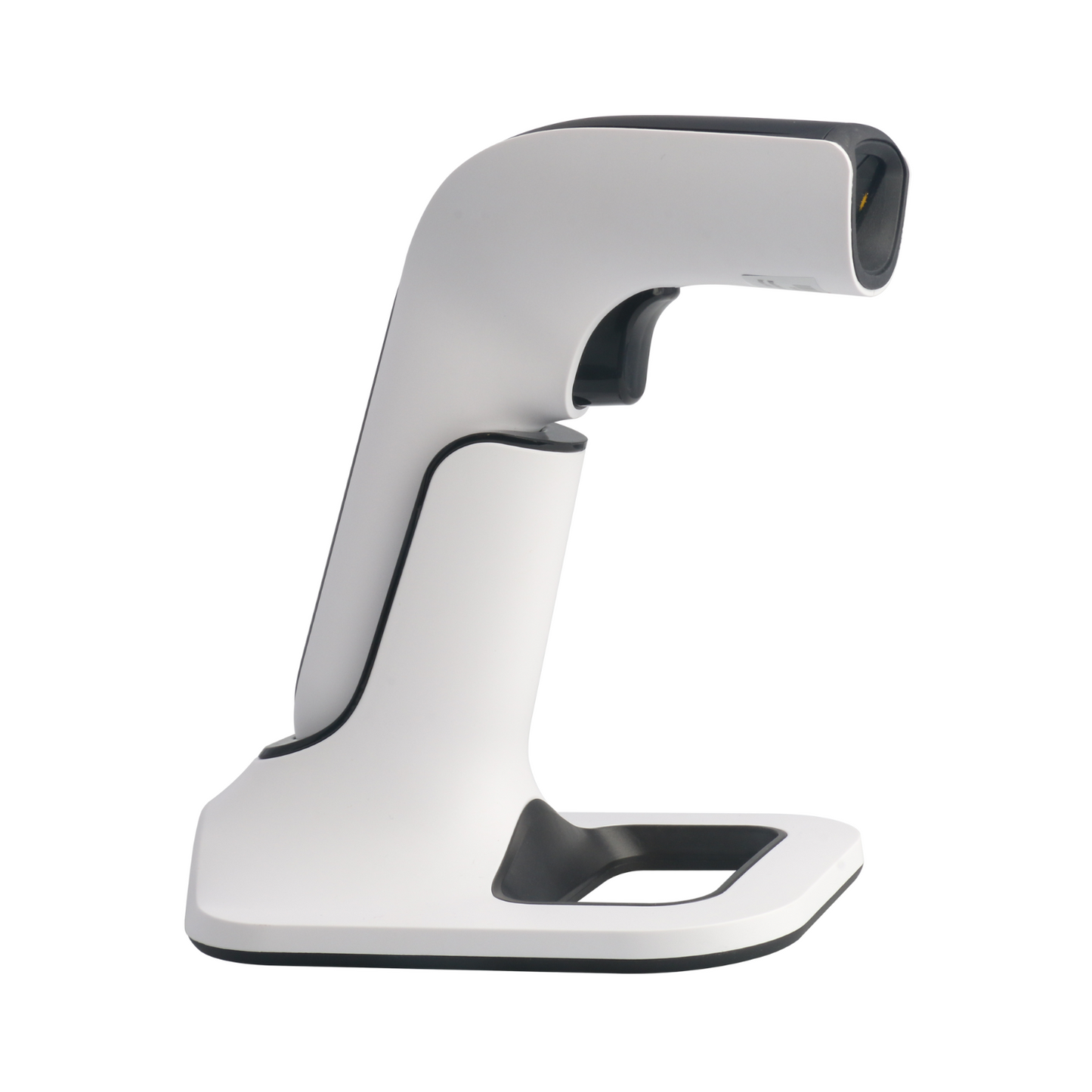

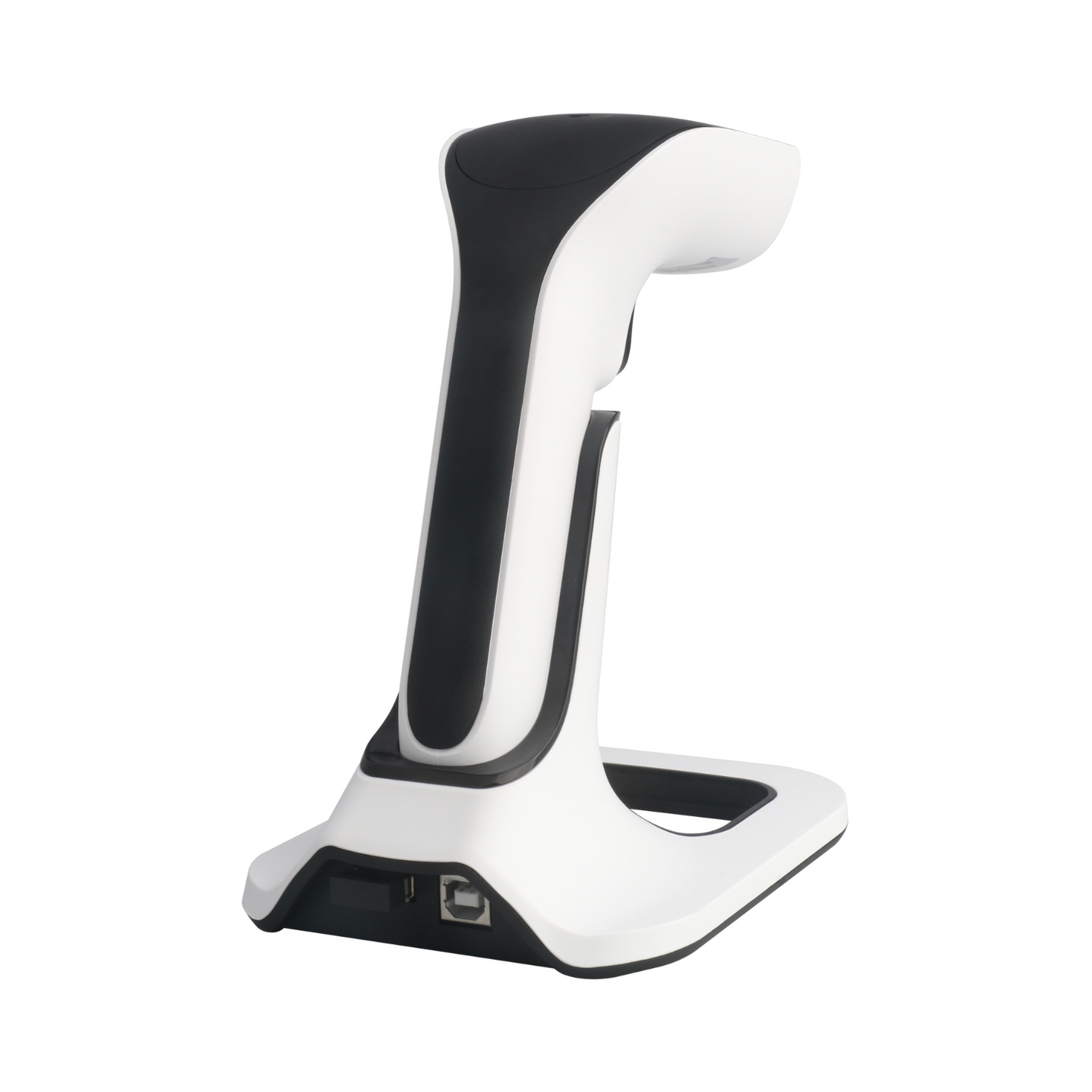

BS132 2D Imager Barcode Reader, Wireless with Base
BS132 2D Imager Barcode Reader, Wireless with Base
BS132 from Pos & Office: Innovation and Precision in Wireless Scanning
Discover the Pos & Office BS132 barcode scanner, an advanced device designed to deliver accuracy, speed and convenience with every scan. Featuring 2D imaging technology and wireless connectivity, the BS132 is ideal for a wide variety of commercial and industrial environments.
High Level Performance
Equipped with a 1280 x 800 image sensor and LED light source, the BS132 provides fast and accurate reading in both manual and automatic modes. Its 20 to 300mm depth of field and ability to operate in light conditions up to 100,000 Lux ensure reliable performance in any environment. With a reading accuracy of ≥4mil, this reader is capable of decoding even the smallest and most difficult codes.
Wireless Connectivity and Flexibility
The BS132 offers wireless communication via 2.4GHz with a range of up to 150 meters, as well as Bluetooth connectivity with a range of 30 meters in open spaces. This flexibility allows users to move freely while maintaining a stable connection, increasing productivity and operational efficiency.
Durability and Adaptability
Designed to withstand intensive use, the BS132 is IP54 certified, ensuring protection against dust and water. Its rugged construction can withstand drops of up to 1.5 meters onto concrete, making it ideal for demanding environments. It operates reliably in a temperature range of -20°C to 50°C, adapting to various environmental conditions.
Versatile Data Capture
The BS132 supports all major 1D and 2D barcode symbologies including UPC, EAN, QR Code, Data Matrix, PDF417, and more. This makes it a versatile tool for a variety of applications from retail to logistics.
Ergonomic Design and Energy Efficiency
With an ergonomic design and a lightweight 160 grams, the BS132 is comfortable to use for long periods. Its 2600mAh battery offers up to 12 hours of continuous use and recharges in just 6 hours, ensuring it is always ready to operate.
BS132 Pos & Office: Accuracy and mobility for efficient, uninterrupted scanning.
Dimensions
Dimensions
Scanner: 168mm x 60mm x 100mm
Weight
Weight
Scanner: 160grs / Base: 110grs
Box contents
Box contents
1x BS132 Scanner (includes base, battery, USB cable and stand)
1x Quick User Guide
Technical specifications
-
PERFORMANCE
Sensor
2D Imager
Resolution
1280 x 800
Reading method
Manual, Automatic
Light source
617nm LED scope
5600K LED lighting
Reading angle
Skew 60°, Roll 360°, Pitch 60°
Contrast
20%
Precision
≥4mil
Depth of field
20-300mm
Ambient light
0~100000 Lux
Wireless communication distance
2.4GHZ: 150 meters
Bluetooth HID: 30 meters (open sky) -
ENVIRONMENTAL
Operating temperature
-20° to 50°C
Storage temperature
-40° to 60°C
Humidity
5% to 95% (non-condensing)
Drop resistance
Up to 1.5 meters above concrete
IP Certification
IP54 -
DATA CAPTURE
1D
All major symbologies including UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar, Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF), Matrix 2 of 5, IATA Code, MSI/Plessey, China Postal Code, GS1 Databar, etc.
2D
All major symbologies including QR Code, Micro QR Code, PDF417, Micro PDF417, Data Matrix, Aztec, etc. -
PHYSICAL CHARACTERISTICS
Dimensions
Scanner: 168mm x 60mm x 100mm
Base: 140mm x 108mm x 105mm
Weight
Scanner: 160grs
Base: 110grs
Notifications
LED light and beep
Material
ABS+PC, TPU
Color
Black & White -
ENERGY
Input voltage
5 VDC ± 10%
Running current
200mA (typical)
Battery
2600mAh
Charging mode
Wireless on base
Loading time
6 hours
Battery life
12 hours (with continuous reading) -
-
