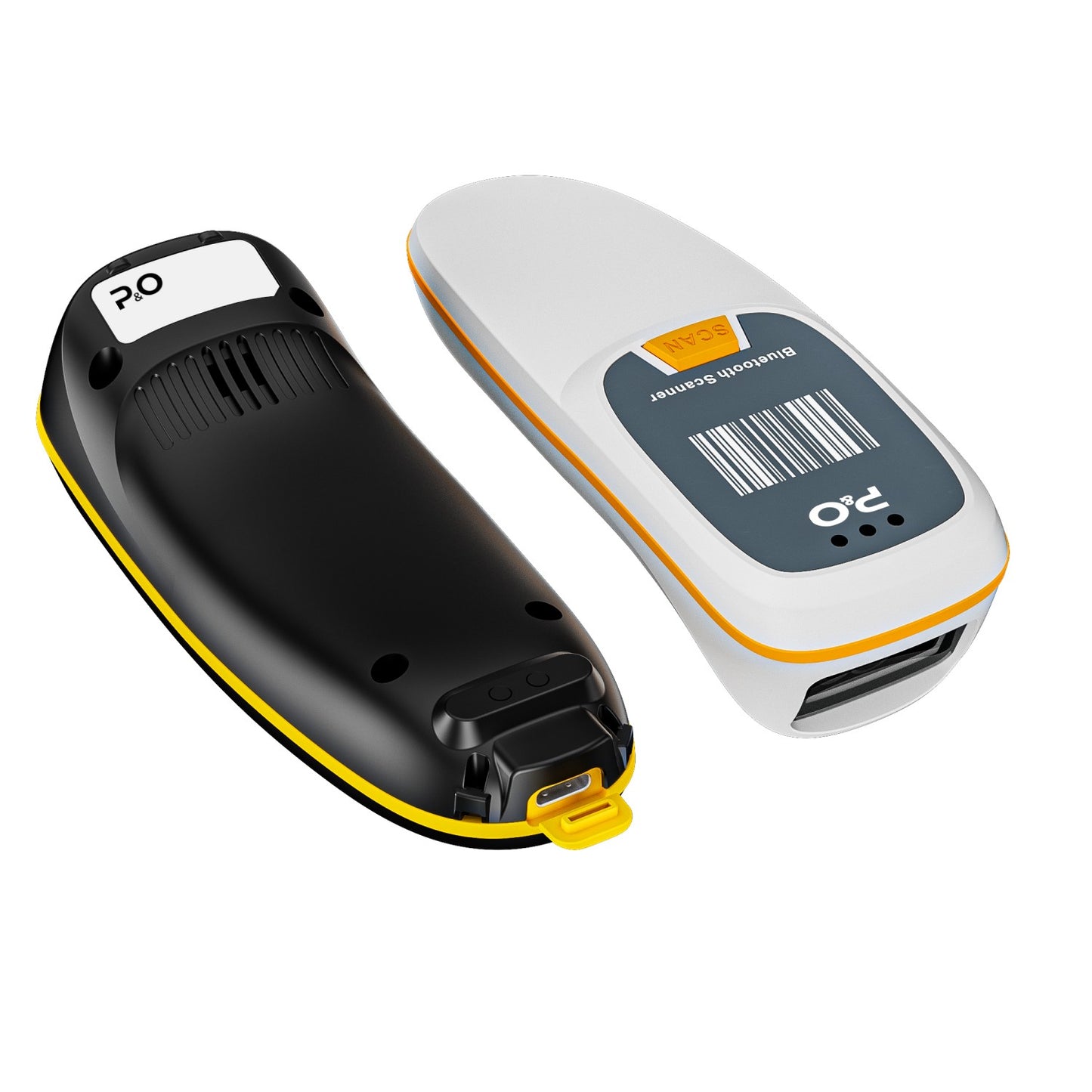

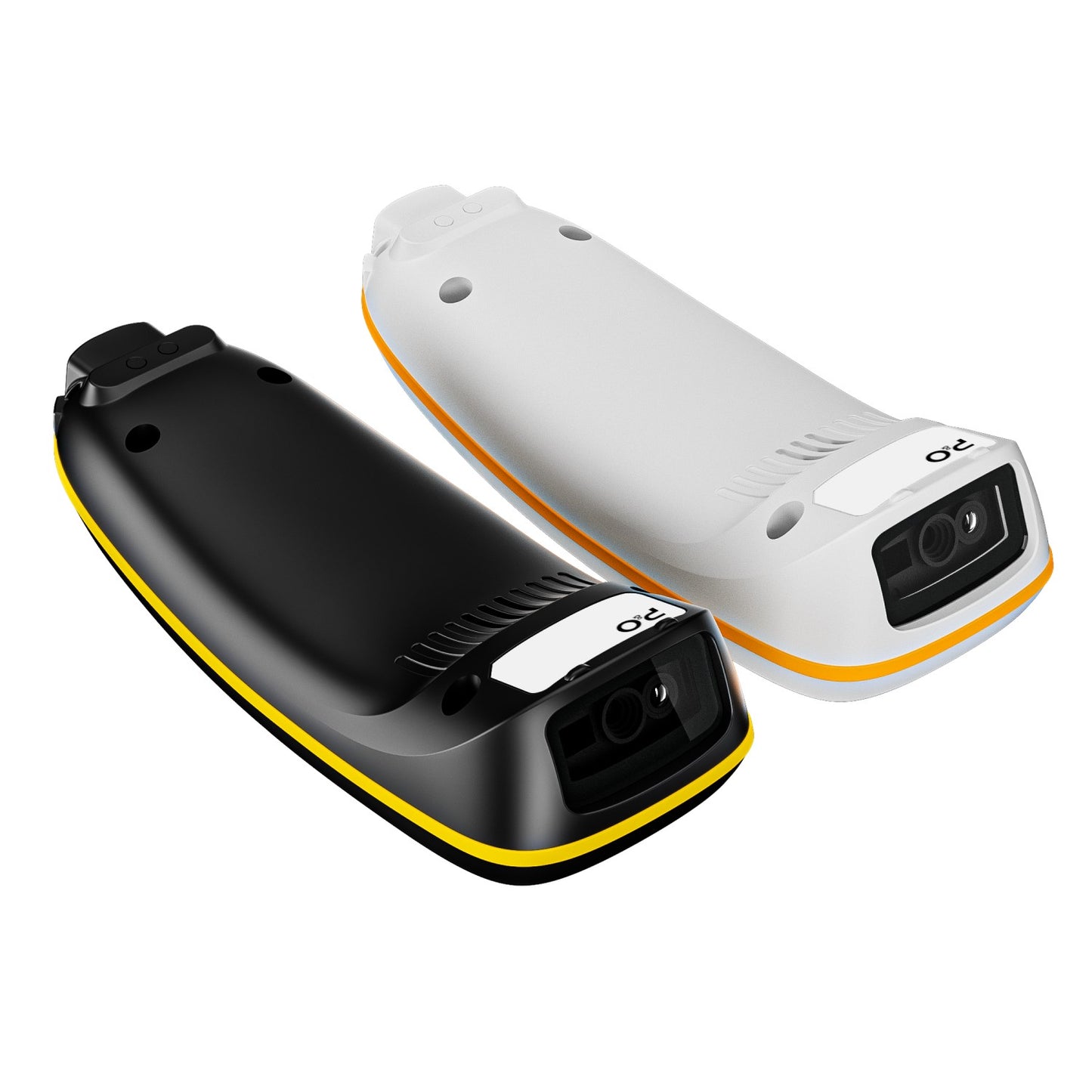

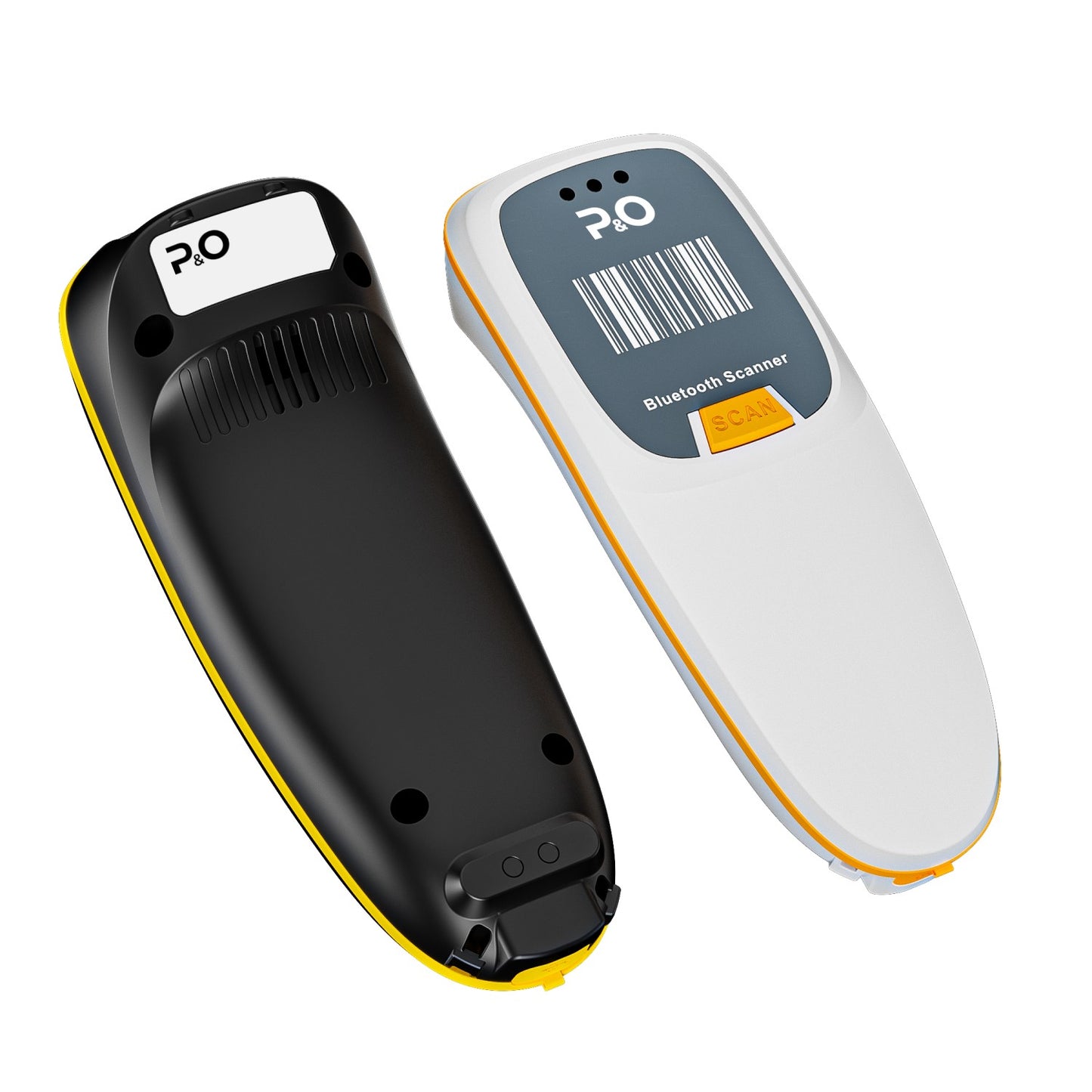

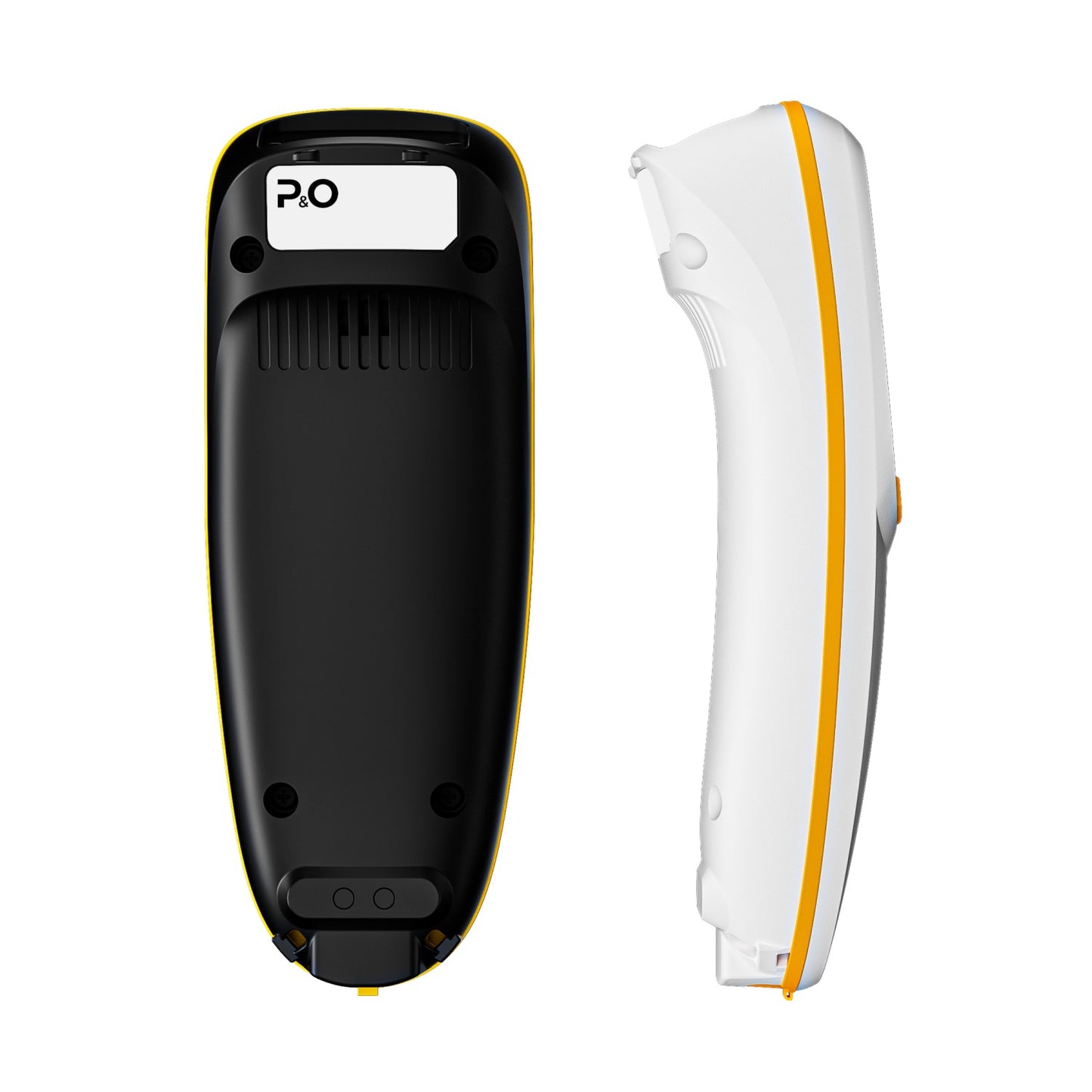

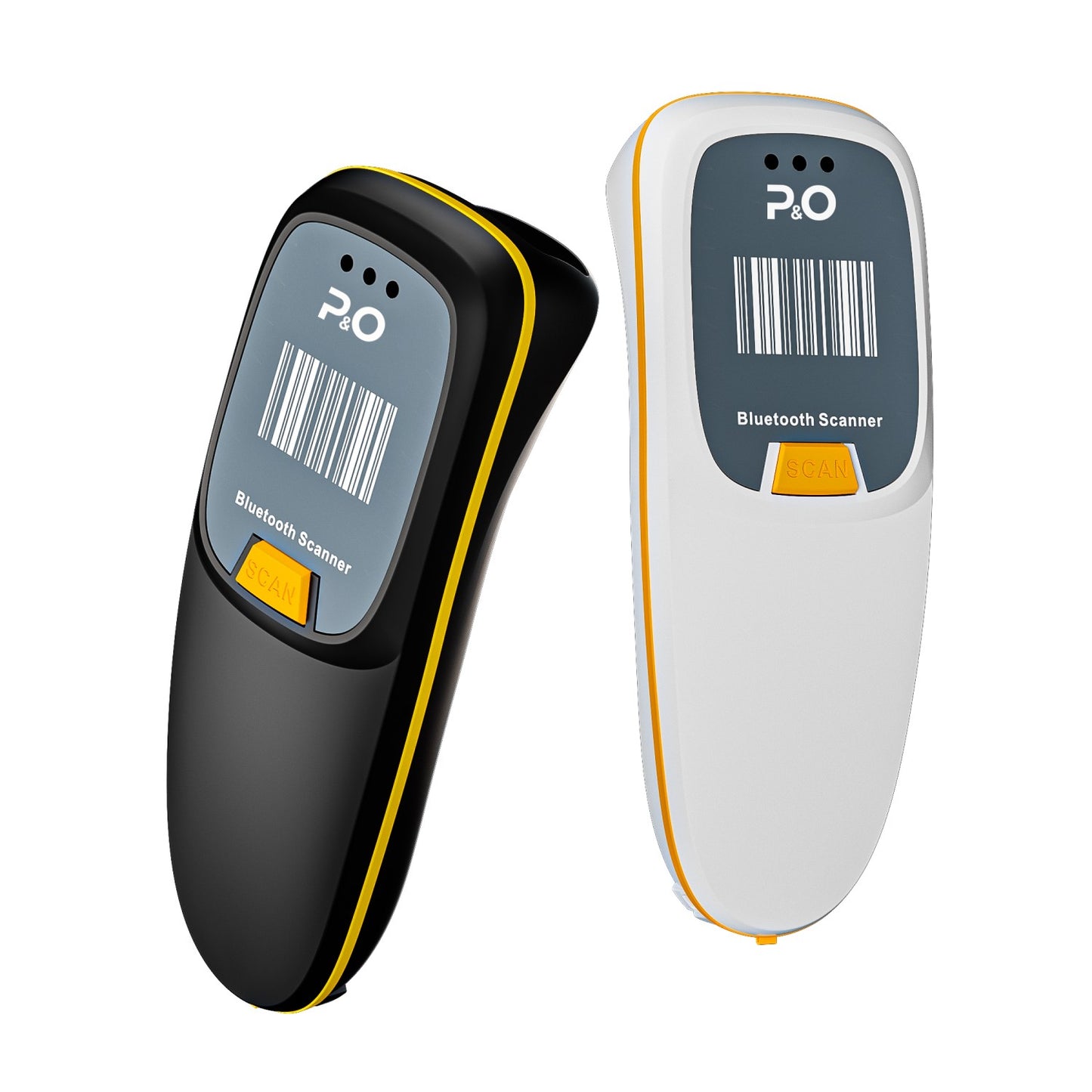

Portable Barcode Reader, 2D Imager BS148

Portable Barcode Reader, 2D Imager BS148

  • With the Pos & Office BS148 barcode reader, you will be able to carry out your logistics operations, last-mile deliveries, mail and field order taking more quickly and efficiently.
  • Its portable and ergonomic design allows you to carry it comfortably in your hand or in your pocket, without taking up much space or causing fatigue.
  • Don't worry about bumps or accidental falls: the BS148 reader resists impacts up to 2 meters high, thanks to its robust and resistant casing.
  • Enjoy the freedom of movement offered by its 2.4Ghz + Bluetooth wireless connection, compatible with a wide range of mobile devices and operating systems.
  • Forget installation complications, the BS148 reader is very easy to set up and use, just by scanning a QR code or pairing via Bluetooth.

Dimensions

135mm x 51mm x 40mm

Weight

104 grams

Box contents

1x BS148 scanner (includes USB cable and USB dongle)
1x Quick user guide

View full details

Technical specifications

  • PERFORMANCE

    Image sensor
    CMOS
    Resolution
    640x480 pixels
    Reading speed
    30 frames per second
    Light level
    0 – 100,000 Lux
    Light source
    Focus: 625nm LED
    Depth of field
    40-200mm @ UPC/EAN 13 thousand PCS =90%
    20-250mm @ QR 20mil PCS =100%
    Minimum print contrast
    ≥20%
    Vision angle
    34° Horizontal, 28° Vertical
    Scan mode
    Manual / Automatic
    memory capacity
    380,000 bytes
    Notifications
    Beep, vibration, blue, red and green LED indicator

  • ENVIRONMENTAL

    Operating temperature
    -20° to 60°C
    Storage temperature
    -40° to 70°C
    Humidity
    5% to 95% (non-condensing)
    Electrostatic protection
    ±8 kv (direct discharge)
    Protection against dust and water ingress
    IP52
    Drop resistance
    Resists 2 meter drops onto concrete

  • DATA CAPTURE

    It can read codes from screens
    1D
    All major symbologies, among them UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN,
    Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessey, Code 32, RSS 14, RSS Limited, RSS Expanded
    2D
    All major symbologies including QR Code, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar stack.

  • PHYSICAL CHARACTERISTICS

    Dimensions
    135mm x 51mm x 40mm
    Weight
    104 grams

  • BATTERY

    Battery capacity
    1500mAh
    Charging mode
    USB Cable
    Loading time
    4-5 hours
    Operating time
    8 hours (in continuous reading mode)

  • WIRELESS FEATURES

    Operating frequency
    Frequency 2.400GHz-2.480GHz ISM
    Transmission range
    2.4G:50m
    Bluetooth HID/BLE/SPP: 40m (in open sky)

  • ENERGY

    Input voltage
    5VDC ±5%
    Running current
    1000mA
