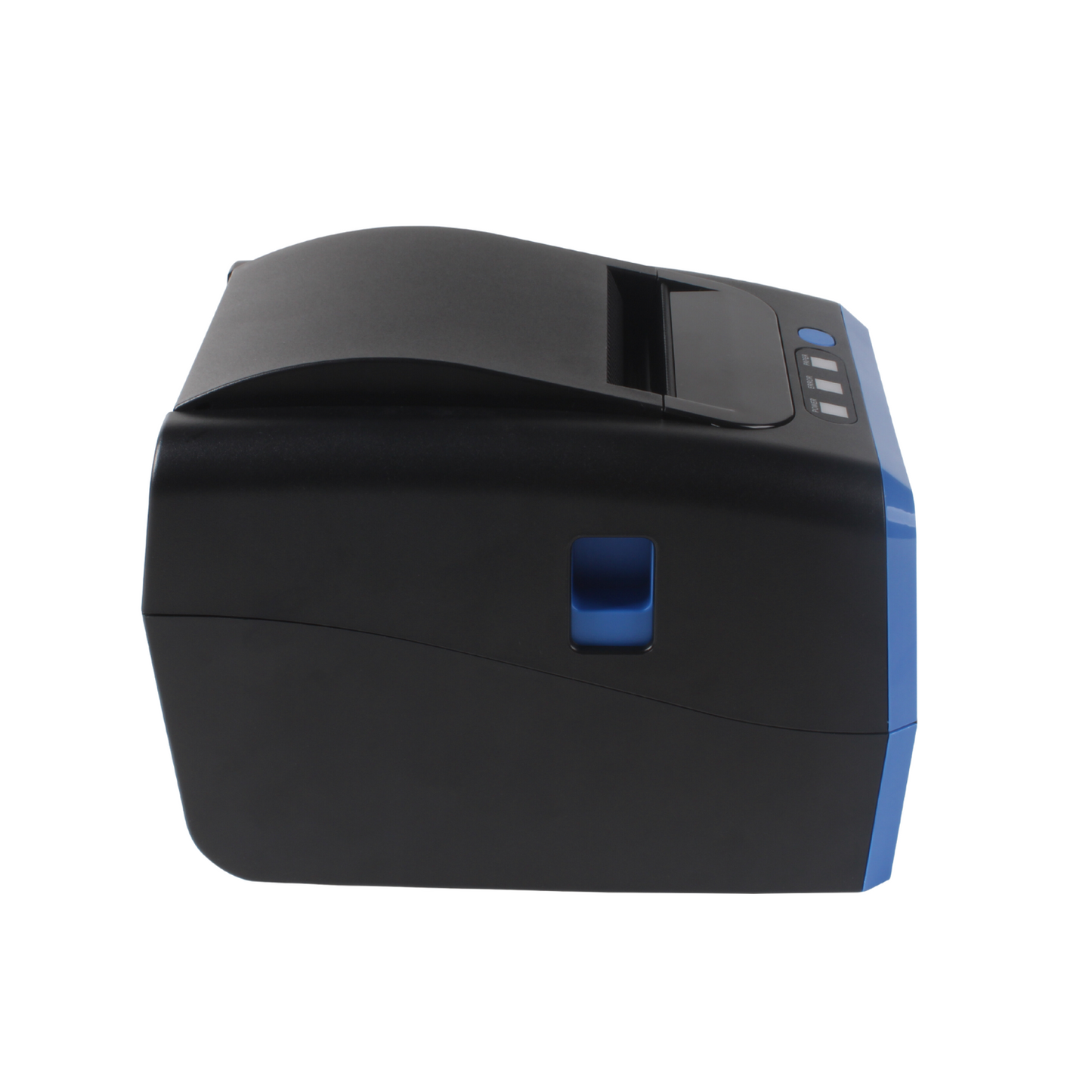

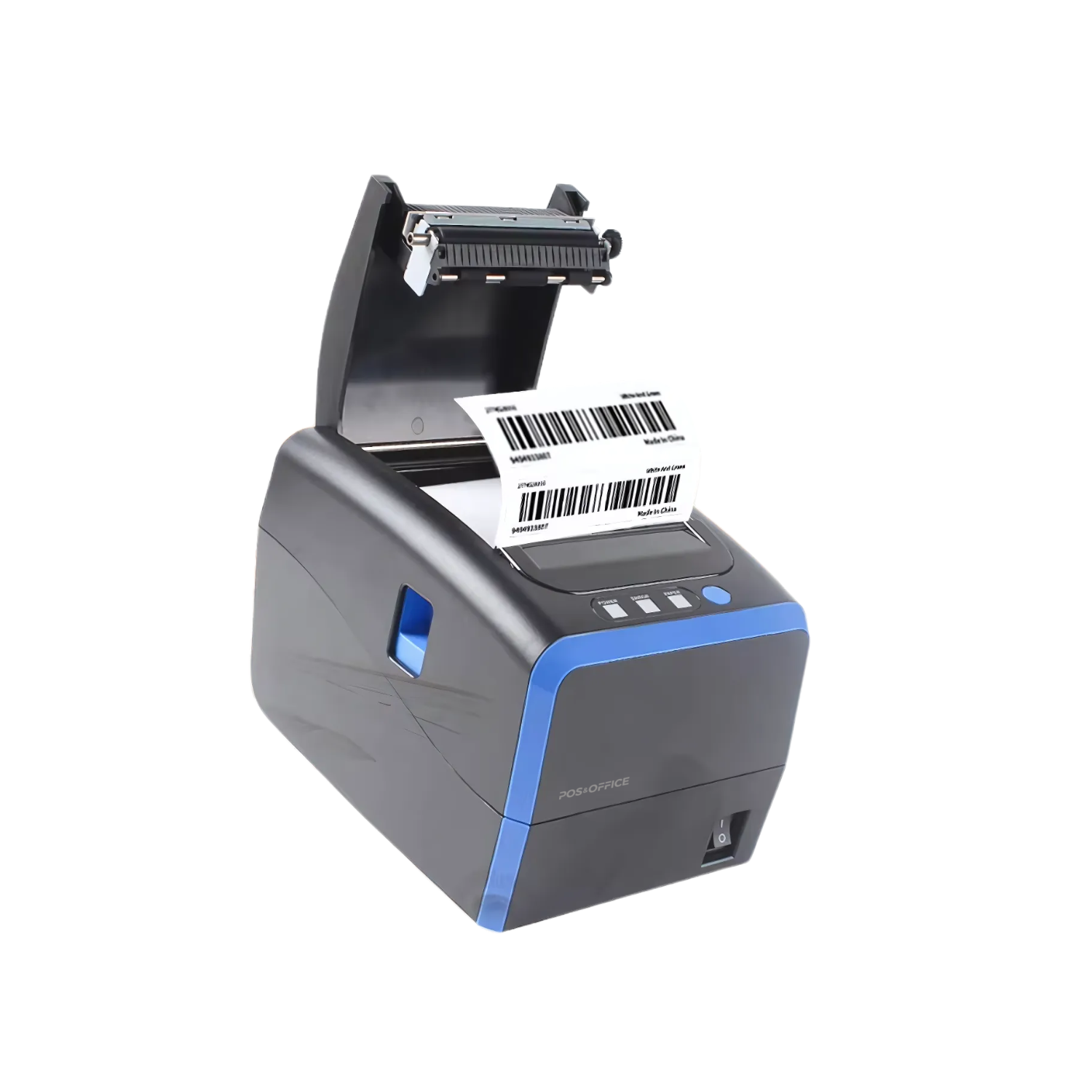

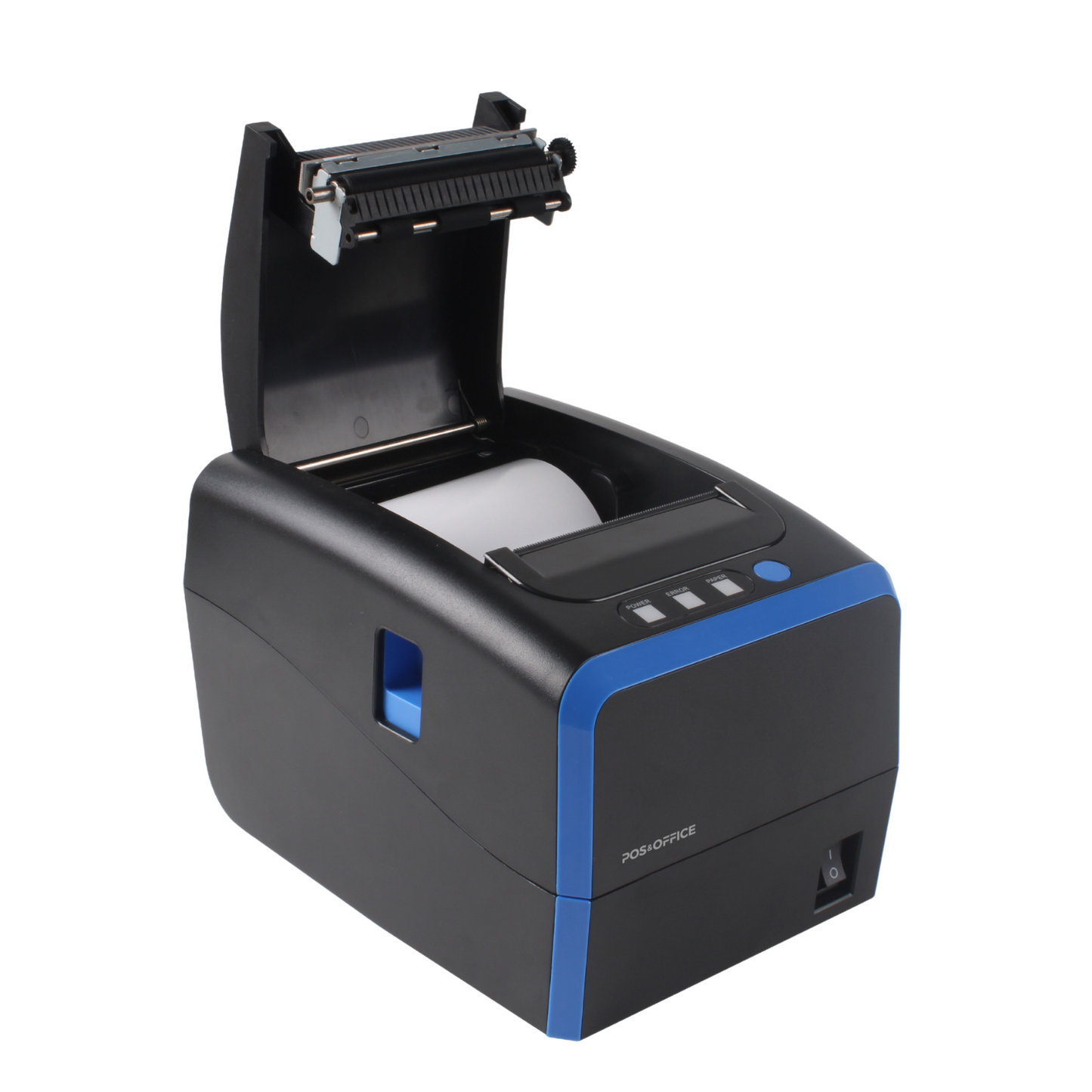

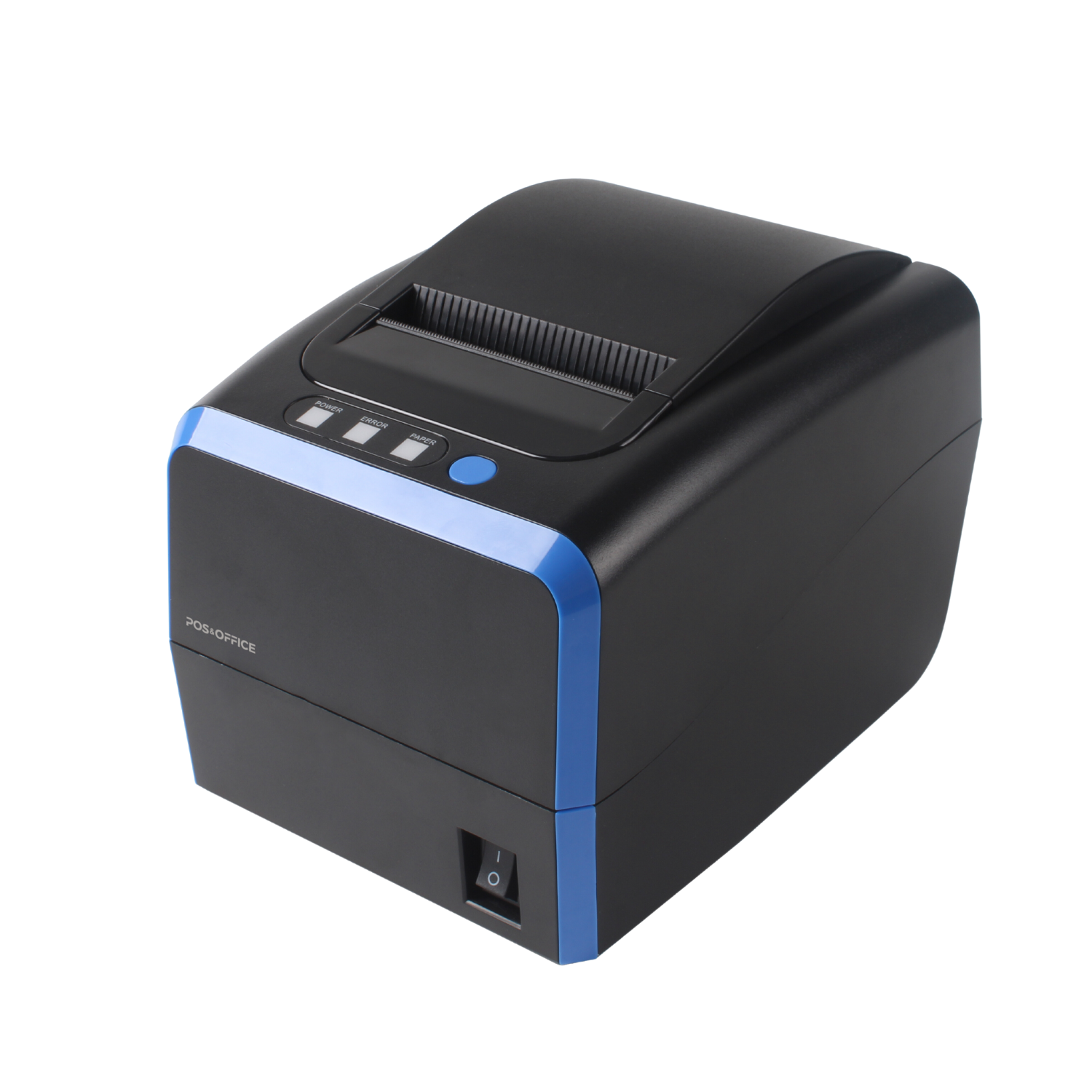

TL70 Linerless Thermal Label Printer
TL70 Linerless Thermal Label Printer
TL70 Pos & Office Printer: Innovation in Linerless Label Printing
The Pos & Office TL70 thermal label and ticket printer combines speed, accuracy and sustainability, offering an advanced solution for businesses looking to optimize their labeling processes without compromising the environment.
Exceptional quality and speed
The TL70 prints at a resolution of 576 dots per line, ensuring clear, crisp labels for any business need. With a print speed of up to 200mm per second, this printer keeps your workflow fast and efficient, ideal for high-demand environments such as catering businesses, supermarkets, warehouses and logistics.
Linerless technology: sustainable and efficient
Linerless technology eliminates the paper backing of labels, providing multiple advantages:
• Higher yield: With the same roll diameter, you can get up to 65% more labels.
• Space and cost savings: By not using liner, storage requires less space and transportation costs can be reduced by up to 40%.
• Waste reduction: With no backing paper, no waste is generated, contributing to sustainability and reducing CO₂ emissions during production and transportation.
• Increased safety: By eliminating the backing paper, risks in the work environment are minimized.
Paper versatility and functional design
Compatible with thermal paper rolls and linerless thermal labels up to 80mm wide, the TL70 also includes an auto-cutter with a 1 million cut durability, ideal for continuous operations. Its design allows for wall mounting, further optimizing the workspace.
Connectivity adapted to your needs
The TL70 linerless thermal printer offers standard USB interfaces and LAN, Serial, Bluetooth and Wi-Fi connectivity options to seamlessly integrate into any environment. It also features LED indicators and smart sensors that detect paper shortages, jams or open lids, ensuring smooth operation.
Compatibility with modern systems
The printer supports TSPL, CPCL and ESC/POS emulations, and offers drivers for Windows and Linux, as well as SDKs for Android and iOS, facilitating its integration into any operating system or commercial software.
TL70 by Pos & Office: The perfect solution for faster, more efficient and more environmentally friendly labelling. Transform your operation with linerless technology and take your business to the next level.
Dimensions
Dimensions
195mm x 151mm x 145mm
Weight
Weight
1.35Kgs
Box contents
Box contents
1x TL70 Printer
1x Power supply
1x USB Cable
1x Quick User Guide
1x Roll of paper (sample)
Technical specifications
-
PRINTING PARAMETERS
Printing method
Direct Thermal
Print density
576 points per line
Print width
80mm (max), 72mm (default)
Print speed
200mm/sec
Print source
Source A: 12x24
Source B: 9x17
Source C: 24x24
Printhead life
100km
Cutter
1 million cuts -
PAPER
Type of paper
Thermal paper roll, thermal label roll without liner
Paper width
80mm/58mm
Thickness
0.06~0.10 mm
Roll diameter
80mm maximum
Cutting method
Automatic
Paper feed direction
Upward
Wall mounting option for front outlet -
GENERAL CHARACTERISTICS

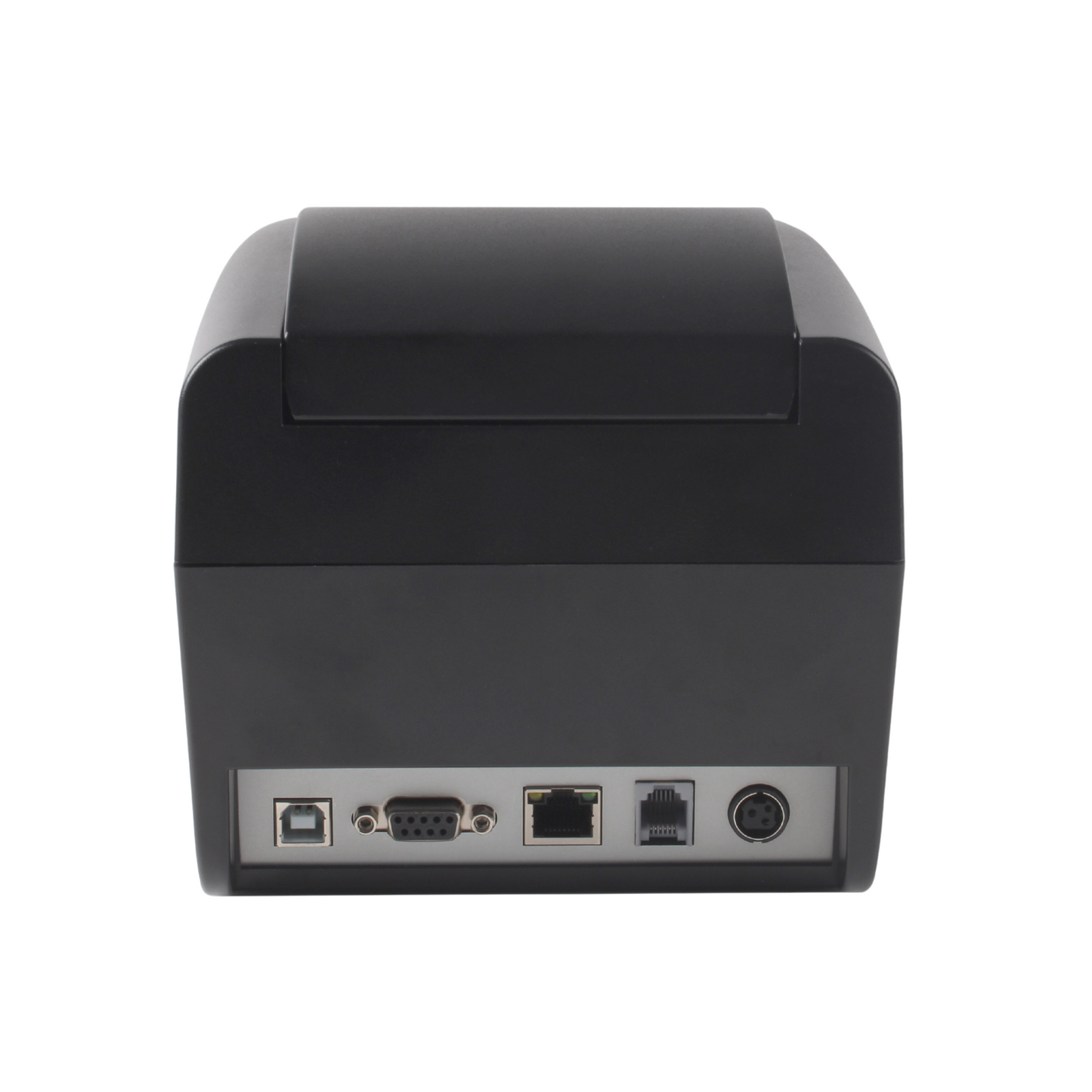

Interfaces
USB
LAN (optional)
Serial (optional)
Bluetooth (optional)
Wi-Fi (optional)
Indicators
Energy
Error
Lack of paper
Sensors
Lack of paper
Open lid
Jam in the cutter
Paper jam
Black mark detection
Keys
1x On/Off
1x Feed
Barcodes
1D
UPC-A, UPC-E, Code 39, Code 93, Code128, Codabar, EAN8, EAN13, ITF25
2D
QR code
Energy
Input: AC 110~240V 50-60Hz
Output: DC 24V, 2.5A -
SOFTWARE
Emulation
TSPL, CPCL, ESC/POS
Drivers
Windows/Linux
SDK
Android/iOS -
PHYSICAL CHARACTERISTICS
Dimensions
195mm x 151mm x 145mm
Weight
1.35kgs
Color
Black
Operating temperature
5~40°C - Humidity: 25~85% non-condensing
Storage temperature
-40~60°C – Humidity: 10~90% non-condensing -
-
