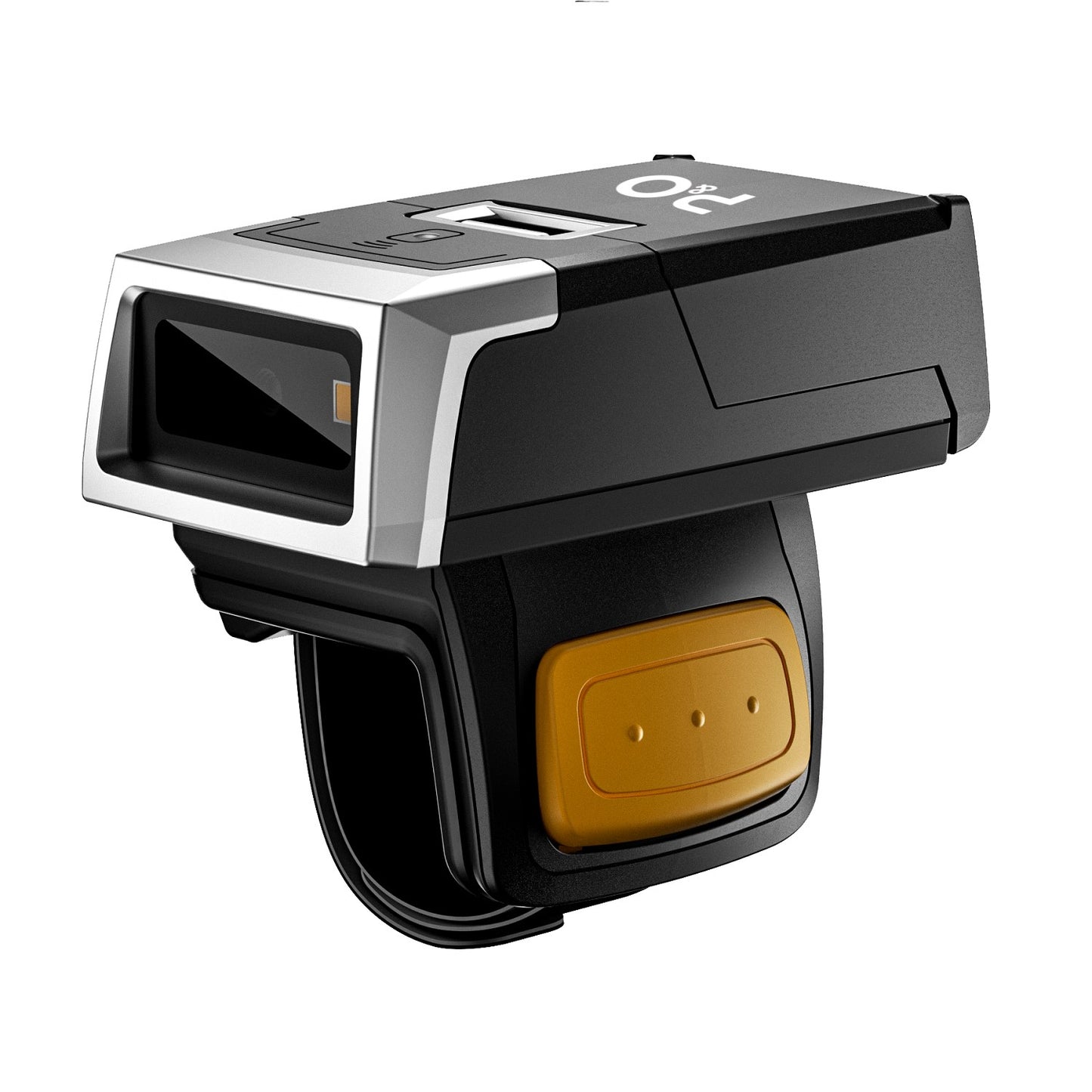

Wearable Ring Scanner BS152 2D Imager

Wearable Ring Scanner BS152 2D Imager

  • It is increasingly common to find 2D barcodes on different types of products. In order to read them, a barcode reader capable of reading 2-dimensional codes is required.
  • We present the BS152 wearable scanner, a very practical ring scanner, specially designed for logistics operations where you need to have your hands free to handle boxes or where a small size reader is needed to read small boxes.
  • Thanks to its wireless technology, the BS152 can be connected via Bluetooth or Wireless 2.4Ghz, giving users freedom of use.
  • Specially designed for distribution centers, the pharmaceutical industry, supermarkets, convenience stores, retail, pharmacies, logistics operations and many other companies.

Dimensions

64.5mm x 34.5mm x 20.5mm

Weight

69grs

Box contents

1x BS152 scanner (includes USB cable)

View full details

Technical specifications

  • PERFORMANCE

    Reader type
    2D Imager
    Resolution
    1280x800
    Reading method
    Manual, Automatic
    Frames per second
    60fps/s
    Light source
    625nm LED sight
    4000K LED lighting
    Reading angle
    Elevation 65°, Tilt 30°, Declination 55°
    Contrast
    ≥20%
    Precision
    ≥4 thousand
    Depth of field
    30-350mm @ UPC/EAN 13 thousand PCS=90%
    40-400mm @ QR 20mil PCS=100%
    Ambient light
    0~100000Lux
    Memory capacity
    380000 bytes
    Wireless communication distance
    2.4GHZ: 50 meters
    Bluetooth: 40 meters

  • ENVIRONMENTAL

    Operating temperature
    -20° to 60°C
    Storage temperature
    -40° to 70°C
    Humidity
    5% to 95% (non-condensing)
    Drop resistance
    Resists 2 meter drops onto concrete
    Protection against dust and water ingress
    IP52

  • DATA CAPTURE

    It can read codes from screens
    1D
    All major symbologies including UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar ( NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessey, China Postal Code, Code 32 (Italian Pharmacode)
    2D
    All major symbologies including QR Code, Data Matrix, PDF417, Aztec, Maxicode, Dotcode, GS1 DataBar stack

  • PHYSICAL CHARACTERISTICS

    Dimensions
    Scanner: 64.5mm x 34.5mm x 20.5mm
    Scanner + ring set: 64.5mm x 40.5mm x 46.5mm
    Weight
    69grs
    Notifications
    Red and blue LED light, beep, vibration
    Material
    ABS+PC, TPU

  • ENERGY

    Input voltage
    5VDC ±5%
    Running current
    1000mA
    Battery
    600mAh
    Charging mode
    USB Cable
    Loading time
    2-3 hours
    Battery life
    8 hours

  • WIRELESS FEATURES

    Operating frequency
    Frequency 2.400GHz-2.480GHz ISM
    Transmission range
    2.4G:50m
    Bluetooth HID/BLE/SPP: 40m (in open sky)
